Scheda madre asrock h810m-p gen5 sk1851 2*ddr5 m.2 hdmi+dp
Scheda madre asrock h810m-p gen5 sk1851 2*ddr5 m.2 hdmi+dp

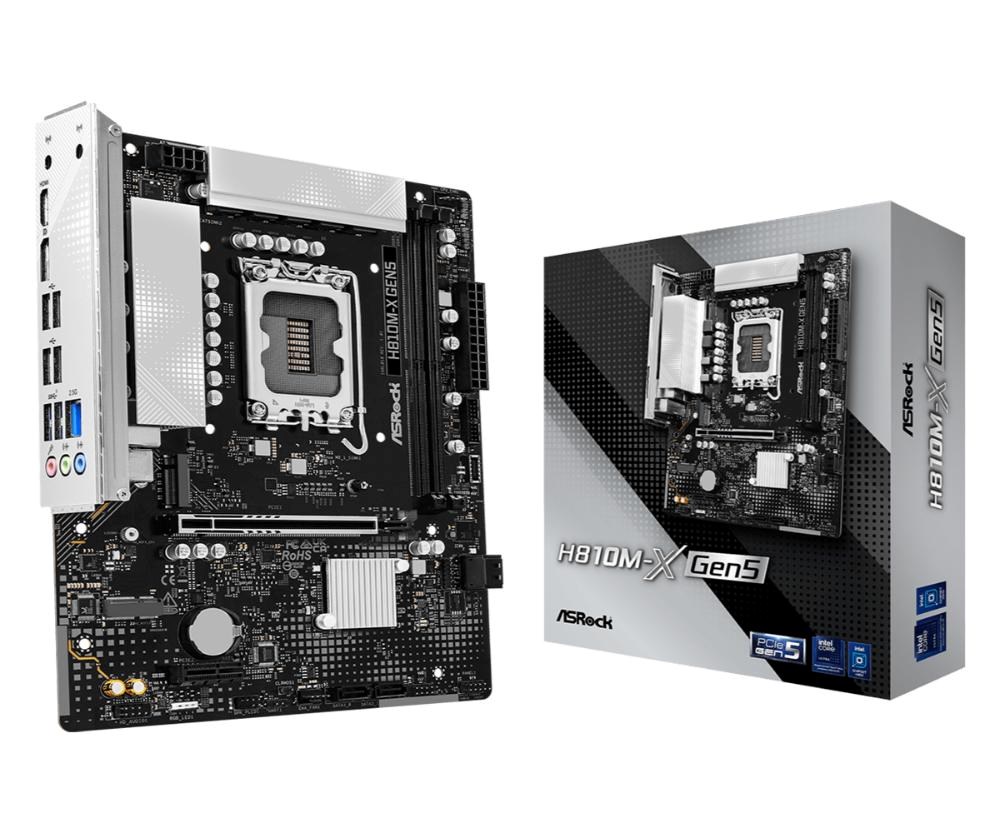

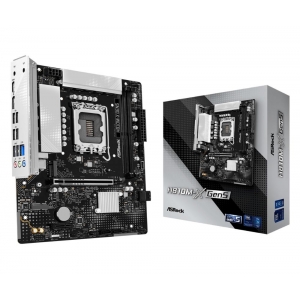

Foto e descrizione sono da ritenersi a scopo illustrativo
  • Produttore: Asrock
  • Codice Prodotto: PLYASR1850050
  • EAN: 4711581494206
  • Cod. Gallo System: H810MPGEN5
0 unità disponibile
2 unità in arrivo
€ 102,48
H810M-P Gen5
  • Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
  • 6+1+1+1+1 Power Phase
  • 2 x DDR5 DIMMs
    Supports Dual Channel, up to 6400
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 1 Hyper M.2 (PCIe Gen4x4)
    4 SATA3
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
    6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN
Visualizza Scheda Tecnica
  • Unique Feature
    Superb Productivity
    - PCIe Gen5 (Graphics)
    - Dual Channel DDR5
    Rock-Solid Durability
    - 6+1+1+1+1 Power Phase
    ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
    EZ Update
    - ASRock Auto Driver Installer
  • CPU
    - Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
    - Supports Intel® Thermal Velocity Boost (TVB)
    - Supports Intel® Adaptive Boost Technology (ABT)
    - Integrated NPU for dedicated AI acceleration
  • Chipset
    - Intel® H810
  • Memory
    - Dual Channel DDR5 Memory Technology
    - 2 x DDR5 DIMM Slots
    - Supports DDR5 non-ECC, un-buffered memory up to 6400*
    - Supports Clocked Unbuffered DIMM (CUDIMM)
    - Max. capacity of system memory: 128GB
    - Supports Intel® Extreme Memory Profile (XMP) 3.0x*

    *Please refer to Memory Support List on ASRock's website for more information.
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    - Intel® Xe LPG Graphics Architecture
    - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111H
  • Slots
    CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 4.0 x1 Slot (PCIE2)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
    * Supports NVMe SSD as boot disks

    *
  • Storage
    Chipset:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors


    *Supports NVMe SSD as boot disks
  • USB
    Chipset:
    - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
    - 6 x USB 2.0 (4 Rear, 2 Front)

    *All USB ports support ESD Protection
  • Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 2 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CHA_FAN1 supports the fan power up to 3A (36W).
    CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 2 x USB 3.2 Gen1 Ports
    - 4 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x I/O Shield
    - 2 x SATA Data Cables
    - 1 x Screw for M.2 Socket
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 7.6-in, 24.4 cm x 19.3 cm
  • OS
    - Microsoft Windows® 11 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
