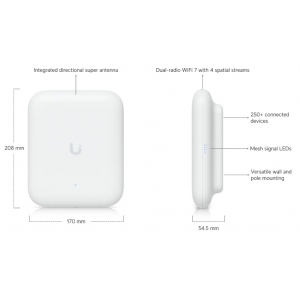

Access point ubiquiti unifi u7-outdoor 4300 mbit/s wifi7 poe

Il dispositivo Ubiquiti UniFi WiFi-7 U7-Outdoor è composto da radio ed antenne integrate dual-band che sfruttano simultaneamente la tecnologia MIMO 2x2.

Grazie alla robusta struttura del suo case, che è stato progettato per resistere agli agenti atmosferici, il prodotto risulta ideale per le installazioni outdoor e permette di coprire vaste aree traendo vantaggio dalla UniFi Mesh Technology che consente la creazione di reti mesh Multi-Hop.

Caratteristiche:

Wi-Fi 7
4 flussi spaziali
Copertura di 465 m² (5.000 piedi²) copertura di spazi aperti con la super antenna direzionale integrata
MIMO: 2.4 GHz (2x2), 5 GHz (2x2)
Guadagno Antenna: 2.4 GHz (Direzionale interno: 8 dBi / Omni esterno: 3 dBi), 5 GHz (Direzionale interno: 12,5 dBi / Omni esterno: 4 dBi)
Throughput rate: 2.4 GHz (688 Mbps), 5 GHz (4324 Mbps)
Oltre 200 dispositivi connessi
Alimentato tramite PoE+
Collegamento a 2,5 GbE
Montaggio versatile a parete e su palo
Larghezza di fascio dell'antenna regolabile via software per una copertura bilanciata con le antenne omnidirezionali in dotazione
IPX6 - Resistente alle intemperie (esposto all'esterno)
Alimentatore non incluso

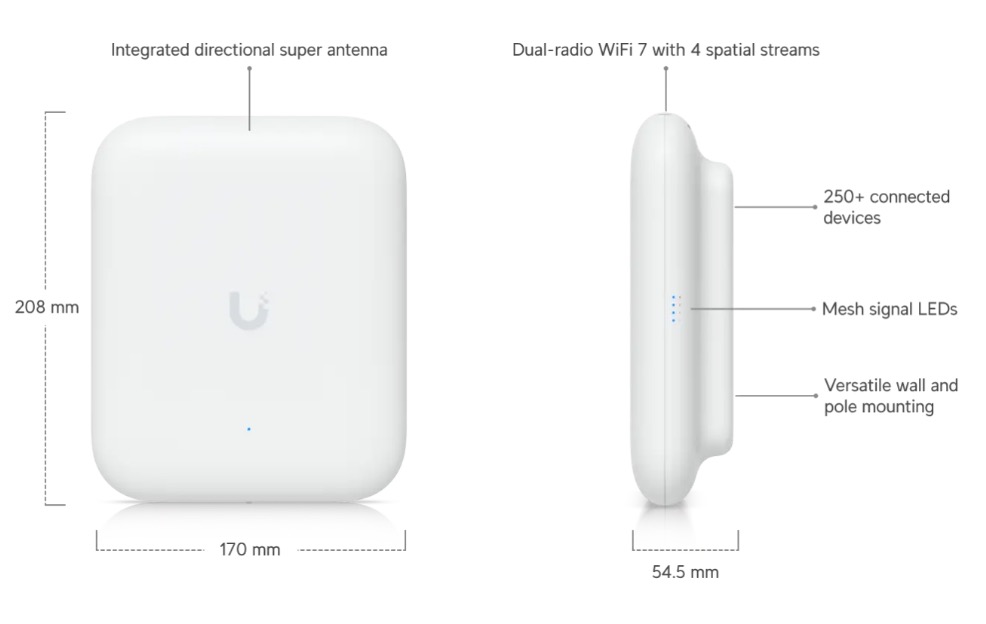

Dimensions

170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")

WiFi Standard

WiFi 7

Spatial Streams

Coverage Area

465 m² (5,000 ft²)

Max. Client Count

250+

Uplink

2.5 GbE

Mounting

Wall, Pole (Mounts Included)

Weatherproofing

IPX6

Power Method

PoE+

MIMO

5 GHz

2 x 2 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz

4.3 Gbps (BW240)

2.4 GHz

688 Mbps (BW40)

Antenna Gain

5 GHz

Directional internal: 12.5 dBi, 45° x 45° External omni: 4 dBi, 360° x 30°

2.4 GHz

Directional internal: 8 dBi, 90° x 90° External omni: 3 dBi, 360° x 30°

Max. TX Power

5 GHz

26 dBm

2.4 GHz

23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7)

7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing

✓

Band Steering

✓

802.11v BSS Transition Management

✓

802.11r Fast Roaming

✓

802.11k Radio Resource Management (RRM)

✓

Advanced Radio Management

✓

Passpoint (Hotspot 2.0)

✓

Captive Hotspot Portal

Custom Branding Landing Page

✓

Voucher Authentication

✓

Payment-Based Authentication

✓

External Portal Server Support

✓

Password Authentication

✓

Guest Network Isolation

✓

Private Pre-Shared Key (PPSK)

✓

WiFi Speed Limiting

✓

Client Device Isolation

✓

WiFi Schedules

✓

RADIUS over TLS (RadSec)

✓

Dynamic RADIUS-assigned VLAN

✓

Max. Power Consumption

19W

Supported Voltage Range

42.5—57V DC

Networking Interface

(1) 1/2.5 GbE RJ45 port

Weight

1.2 kg (2.6 lb)

Wind Loading

74.6 N at 200 km/h (16.8 lbf at 125 mph)

Pole Mount Diameter

1–2.36" (25–60 mm)

Antennas

(1) Directional internal antenna (2) External omni antennas (2) RP-SMA connectors for external antenna

Antenna beamwidth

5 GHz

45°

2.4 GHz

90°

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate, aluminum alloy

Mount Material

Polycarbonate, SGCC steel

LEDs

System

(1) Power: White/Blue (1) System: White/Blue (4) Mesh Signal: Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel

Operating Frequency

US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz

Ambient Operating Temperature

-30 to 60° C (-22 to 140° F)

Ambient Operating Humidity

5 to 95% noncondensing

Application Requirements

UniFi Network

Version 8.2.93 and later
