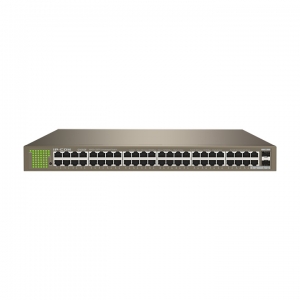

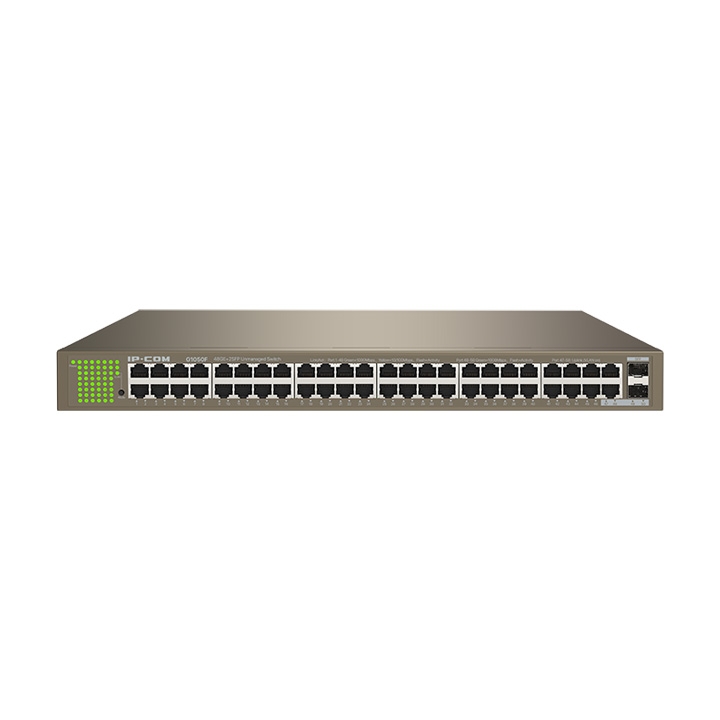

ip-com - g1050f
48ge+2sfp unmanaged switch- comply with ieee 802.3, ieee 802.3u, ieee 802.3ab, ieee 802.3z, and ieee 802.3x standards.
- provide 48 10/100/1000 mbps base-t ethernet ports and support auto mdi/mdix.
- provide 2 independent 1000 mbps base-x sfp ports and support 20 km long-distance networking.
- support 16k mac address table and mac address auto-learning.
- support full duplex ieee 802.3x flow control and half duplex back pressure flow control.
- support unblocked wire speed forwarding for all ports.
- support 12mb large buffer queue.
- integrated professional lightning protection circuit offers 6 kv lightning protection for the built-in power supply and all ethernet ports.
- one-key vlan function helps isolate broadcast storms effectively.
- feature a 19-inch/1u standard rack-mount shell design.
| product model | g1050f |
| hardware features | |
|---|---|
| network standards | ieee 802.3, ieee 802.3u, ieee 802.3x, ieee 802.3ab, ieee 802.3z |
| led indicators | one link/act led indicator for each port（green：1000m，yellow：100m） one power led indicator for each device one vlan led indicator for each device |
| ports | 48 10/100/1000base-t ethernet ports 2 independent 1000 mbps sfp ports |
| transmission medium | ethernet: cat3 utp or better fast ethernet: cat5 utp or better gigabit ethernet: cat5e utp or better 1000base-sx: mmf 1000base-lx: mmf or smf |
| dimensions (l x w x h) | 440 mm x 240 mm x 44 mm |
| product material | steel shell |
| fan | fanless |
| protection | port lightning protection: 6 kv power supply lightning protection: 6 kv electrostatic protection: - air discharge: ±8 kv - contact discharge: ±6 kv |
| forwarding mode | store-and-forward |
| switching capacity | 100 gbps |
| packet forwarding rate | 10 mbps: 14880 pps 100 mbps: 148800 pps 1000 mbps: 1488000 pps |
| buffer | 12 mb |
| mac address table | 16 k |
| jumbo frame | 12 k |
| power supply | input: 100 - 240v ac 50/60hz output: 12v 4a |
| whole switch consumption | whole switch consumption: <48 w="" td=""> |
| mounting methods | support desktop mounting support wall mounting support rack mounting |
| environment | operating temperature: 0°c - 45°c storage temperature: -40°c - 70°c operating humidity: (10% - 90%)rh, non-condensing storage humidity: (5% - 90%)rh, non-condensing |
| certificates | ccc, fcc, ce, rohs |
| software features | |
| protocol | cdma/cd |
| mac address learning | auto learning and auto updating |
| function | one-key vlan (in this mode, ports 1 to 46 cannot communicate with each other, but can communicate with ports 47 to 50.) |
