ma30e

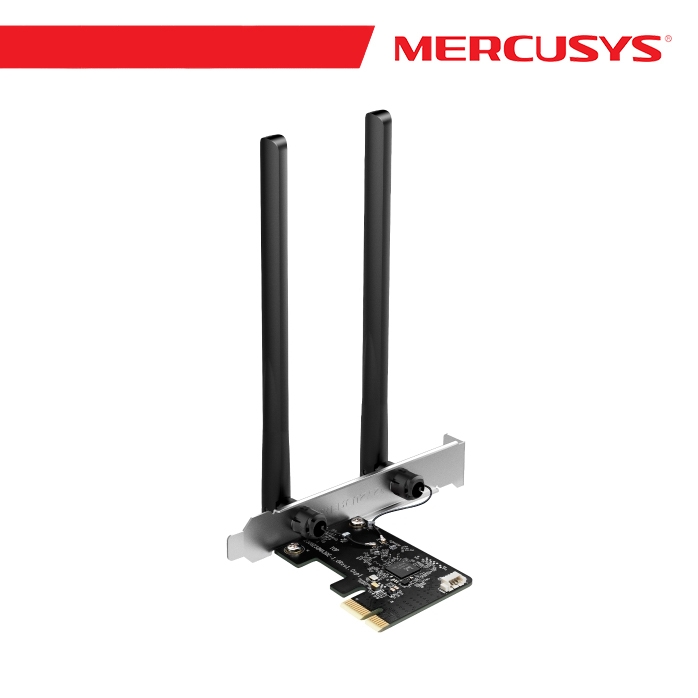

ac1200 wi-fi bluetooth pcie adapter
strong dual band wi-fi speed — speeds up to 867 mbps (5 ghz) + 300 mbps (2.4 ghz)1
wider signal coverage — two high-performance antennas
bluetooth 5.0 — the bluetooth 5.0 technology achieves faster speeds and broader coverage2
mu-mimo — simultaneously serve several devices with no more latency or bandwidth congestion3
improved security — the latest security enhancement, wpa3, provides enhanced protection in personal password safety4
backward compatibility — full support for 802.11ac/a/b/g/n standards
windows compatible — supported operating system: windows 10, 11 (64 bit)
please note: ma30e is not compatible with the low-profile bracket because of the fixed antennas.
| category | details |
|---|---|
| wireless standards | ieee 802.11 a/n/ac 5 ghz ieee 802.11 b/g/n 2.4 ghz |
| wifi speeds | 867 mbps on 5 ghz 300 mbps on 2.4 ghz |
| reception sensitivity | 5 ghz: - 11a 54mbps: -77 dbm - 11ac vht80 mcs0: -92dbm - 11ac vht80 mcs9: -64dbm 2.4 ghz: - 11g 54mbps: -76 dbm - 11n ht40 mcs7: -72dbm |
| wireless security | wpa-psk/wpa2-psk/wpa3-sae |
| hardware dimensions | 8.9 × 4.8 × 0.85 in (226.3 × 120.8 × 21.5 mm) |
| antenna type | 2× fixed high-performance omni-directional antennas |
| others | package contents: - ac1200 wi-fi bluetooth 5.0 pcie adapter (ma30e) - bluetooth header cable - quick installation guide - resource cd |
| environment | operating temperature: 0°c - 40°c (32°f - 104°f) operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
| system requirements | supported operating systems include windows 10, 11(64-bit) |
